Sub-standard coal and poor quality control — understanding Eskom’s high failure rate

Sub-standard coal and poor quality control — understanding Eskom’s high failure rate

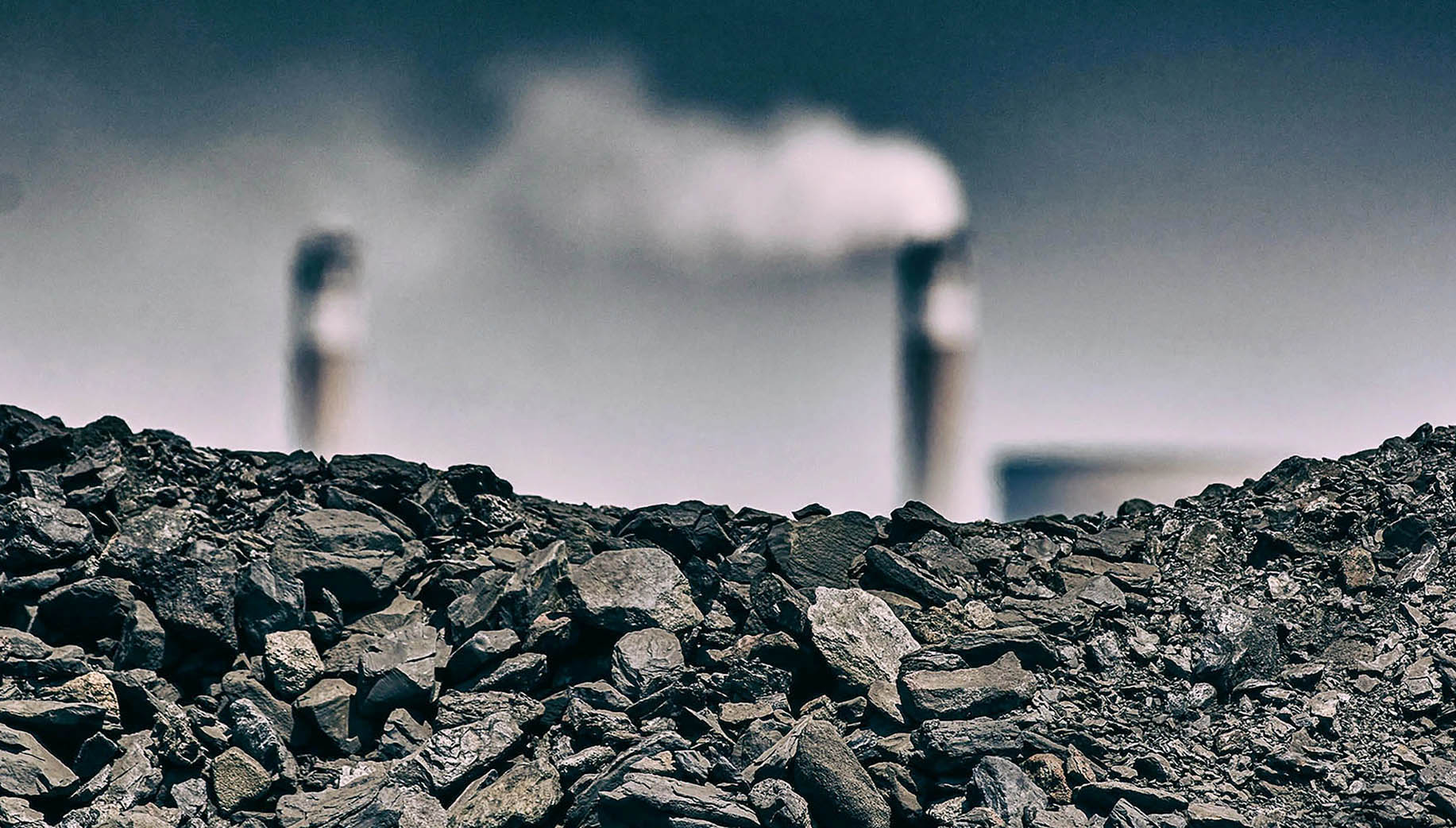

A coal pile in front of the towers of the Kendal coal-fired power station in Mpumalanga. (Photo: Waldo Swiegers. / Bloomberg via Getty Images

Researchers have identified the underlying causes of continuous breakdowns and failures at Eskom coal power stations.

For the time being at least, coal-fired boilers remain the backbone of Eskom’s electricity generation fleet. Coal-fired boilers work by boiling water to produce high-pressure steam which is then used to spin a turbine. To do this, water is pumped at high pressure through boiler tubes which are heated by a coal-fired furnace to produce high-pressure steam.

This combination of extreme pressure and temperature places severe stress on these tubes and over time, they corrode and fail, sometimes accelerated by the presence of corrosive chemicals in the hot furnace gases. This corrosion inevitably results in a rupture and requires that the whole unit be shut down for maintenance. These occasional failures are a normal part of a power station’s operation and are factored into power generation planning. When they happen more often than expected, however, they result in under-delivery of power and, in South Africa’s case, rolling blackouts.

Eskom has stated that boiler-tube failures are the leading cause of unavailability of power generation or, in simpler terms, they are the main culprits for rolling blackouts. The rate at which these failures occur has been rising. Eskom set themselves a target of one tube failure per year per unit but, as of 2021, were averaging 2.3 failures a year. One can only assume that this number has been rising since then, with 2022 by far our worst year of rolling blackouts ever.

On 8 December it was reported that Eskom’s coal fleet was operating with just 40% of its installed capacity available, woefully short of its stated target, a more normal 75% availability. Part of the problem lies in maintenance. Eskom has reported that funding delays, among other issues, often force it to delay planned maintenance on units, heightening the risk of failure, particularly unexpected failure. Perhaps more alarming, when maintenance is carried out, it doesn’t always meet standards and the units fail anyway.

Researchers at Wits, however, have identified underlying causes that are more fundamental to the coal fleet’s chronic boiler-tube failures.

Professor Josias Van Der Merwe, the Head of School at the Wits School of Chemical and Metallurgical Engineering, and KG Moloko, a postgraduate researcher in that school, have conducted a range of chemical analyses on boiler tubes from Eskom power stations to determine the mechanisms and causes behind their corrosion.

They found that the main culprit is sulphidation, a chemical process that degrades steel through the formation of brittle compounds of iron and sulphur. Two chemical conditions must be in place for this to occur — the presence of sulphur, and a low concentration of oxygen, which allows the sulphur to react with iron rather than being oxidised.

The Wits analyses indicate that these conditions are both present in the Eskom boilers that they examined, creating chemical pre-conditions that lead to heightened rates of corrosion and frequent failures.

There is no doubt that Eskom is beset by a multitude of crises ranging from shortages in funding and personnel, along with an ageing fleet that has been overworked to keep the lights on, and even sabotage and threats of violence.

Nevertheless, as long as the chemical pre-conditions for high failure rates are present, energy availability will remain low even if these issues were resolved and, perhaps more concerning, availability could deteriorate further still as more units fail.


Visit Daily Maverick’s home page for more news, analysis and investigations


Eliminating or mitigating the chemical pre-conditions for high failure rates, therefore is a crucial first step that must be taken for Eskom to start working its way back toward a functioning coal fleet. Unfortunately, it is more easily said than done.

The first root cause of these chemical conditions is high sulphur content in the coal fed to the burners. Coal reserves vary considerably in their sulphur content and, generally speaking, lower sulphur content coal comes with a higher price-tag, because the presence of sulphur is problematic for most coal uses.

Sulphur also results in emissions that are damaging to the environment and to human health.

As with most mining activities, the most appealing reserves tend to be mined first and therefore, the standards of remaining reserves decline over time. This trend is one factor in the declining performance of Eskom’s coal fleet, but several scientific articles have found that South Africa’s coal reserves are generally low in sulphur and so, in principle, they should be able to avoid sulphur-driven corrosion if motivated to do so.

The issue, then, is not what coal South Africa has, but what coal Eskom chooses to buy and use. This has long been a politicised matter and Eskom has a proven history of purchasing sub-standard coal, having spent hundreds of millions purchasing coal containing 2% sulphur from the Gupta-owned Tegeta mining, well above the specified limit of 1.3%.

Investigators also found evidence that coal inspection processes had been interfered with, with samples from one mine allegedly swapped out to obscure their sulphur content.

Other aspects of coal quality have come to light previously, with reports that some of the coal supplied to Eskom is even mixed with sand and rocks as a means of increasing the weight of what is sold. The fact that such obviously sub-standard product manages to make it into Eskom’s boilers reveals shocking deficiencies in inspection and quality control, leaving South Africa entirely at the mercy of unscrupulous coal producers.

The second chemical pre-condition identified by the Wits researchers, low oxygen levels inside the boiler tubes, is itself a complex operational issue.

I asked Professor Van Der Merwe whether feeding higher ratios of air to coal could reduce the rate at which this type of corrosion occurs and he indicated that while it may help, it would result in increased emissions of NOx compounds which have extremely high global warming potential (many times that of CO2), as well as a range of detrimental health effects. The main reason that boilers are operated in conditions of restricted oxygen is to prevent the formation of these compounds, which form when oxygen and nitrogen (the main constituents of air) react together at high temperatures.

That may be a trade-off that South Africa simply has to accept as a stopgap to slow the fleet’s deterioration, while Eskom hopefully finds a way to switch to coal of an adequate standard — a task which should be treated as a key national priority. DM

Neil Thomas Stacey lectures in Biomedical Engineering and on waste-water management at Wits University.

First published by GroundUp.

Gallery

Comments - Please in order to comment.

  • Nick Jacobs says:

    The real issue, as far as I can understand, is that no one in a position of responsibility is willing to stand up and take ownership of solving the issue. The excellent technical analysis notwithstanding, this is an organizational issue through and through.

  • Michael Bellis says:

    Nick Jacobs.
    Coal firing technology is not new. The “impurities” in coal are a given – coal is a naturally occurring deposition and the variations /differences in thermal and chemical properties require that operational practices are geared to minimise the variations. Examples are sourcing from a multiple of mines, stockpiling and bending of coal of differing qualities is essential. The more the variation of coal quality, the bigger must be the stockpiles.
    The lowest cost of power generation comes from precise coal quality monitoring and adjusting firing conditions to avoid fire-tube damage.
    When we read of stockpile conveyor systems being bypassed and delivered coal being dumped directly into the power station firing/ grinding system, that is a recipe for disaster.
    Tied mines was old Eskom policy , aimed at ensuring a coal supply and quality consistency.
    It now seems any coal, from any source, any time, is the order of the day.
    There are trade-offs between low and high quality coal being used for generation but there are operational preconditions that must be in place to ensure consistency, which include a competency and ability to micro adjust the process if poor quality ( cheaper) coal is to be used.
    It seems as if any coal will do.
    It’s no wonder that boiler tube damage keeps on occurring.

  • Dietmar Horn says:

    This research simply shows that Eskom has been ruled by technical and commercial incompetence for decades.

  • Lisbeth Scalabrini says:

    Investigators also found evidence that coal inspection processes had been interfered with, with samples from one mine allegedly swapped out to obscure their sulphur content.

    With this kind of mentality, nothing will ever be able to work properly.

  • Harro von Blottnitz says:

    Sulphur quality control does matter! But, Neil, are you confusing the oxides of nitrogen here? Thermal oxidation leads to NO and NO2 (which impacts human health) but not to N2O, the potent greenhouse gas, if I remember my atmospheric chemistry textbook correctly.
